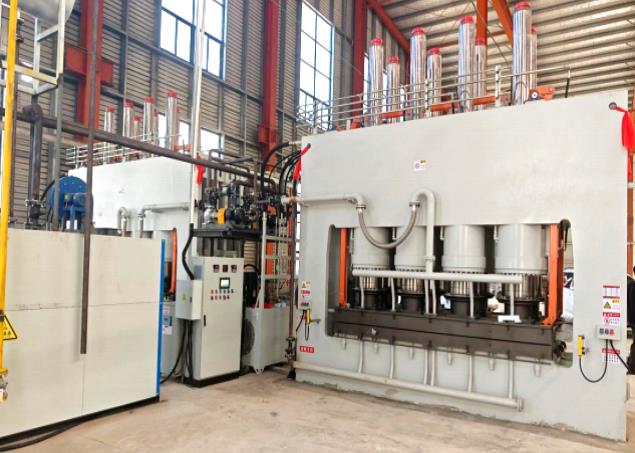

Melamine MDF Lamination Hot Press Machine

• Product：Melamine MDF Lamination Hot Press Machine
• Alias： Hot Press Machine

Melamine MDF Lamination Hot Press Machine

Hot Press Machine Specifications

• Function: Double-faced pressing

• Press Direction: Horizontal

• Motor Power: 35.2 kW

• Upper Hot Press Plate Size: 1400 × 2600 × 140 mm

• Lower Hot Press Plate Size: 1400 × 2600 × 120 mm

• Layer Spacing: 250 mm

• Main Cylinders: Φ320 × 250 mm, 8 units

• Lifting Cylinders: Φ80 × 260 mm, 4 units

• System Operating Oil Pressure: ≤25 MPa

• Hot Press Plate Temperature: ≤250°C

• Upper Plate Temperature Control: Single layer control, 6 inlet and 6 outlet points

• Lower Plate Temperature Control: Single layer control, 6 inlet and 6 outlet points

• Upper Plate Lifting Guide Method: Synchronous link rod

• Electrical Control System: PLC + Touch Screen

• Heating Medium: Heat transfer oil

• In/Out Board Speed: Adjustable

Who Need the High-Temperature, High-Pressure Single-Layer Lamination Hot Press?

• High-Grade Furniture and Decorative Panels

  the single lamination hot press machine can ensure the surface is smooth and flat, with strong adhesion and no bubbles or delamination, improving quality and durability.

• Hard-to-Bond or High-Performance Facing Materials

  Such as natural wood veneer, thick PVC film, or dense melamine paper, which need higher heat and pressure for a good bond.

• Thick or Special Base Materials

  Thick or dense boards like multi-layer plywood or MDF require strong pressure to make the lamination firm.

• Complex Lamination Processes

  Including multi-layer facing or heat- and wear-resistant surfaces, which need higher temperature and pressure to work well.

• Strict Quality Requirements

  For export products or high-end markets where strong standards must be met to avoid delamination or warping.

Why Is Single-Layer Lamination Hot Press More Suitable for Laminating High Quality Plywood?

1. Accurate Control
   • You can adjust temperature and pressure for each board separately, which helps bond tricky materials like natural wood veneer or thick PVC perfectly.
2. Avoid Problems from Stacking
   • Pressing multiple boards at once can cause uneven pressure, shifting, bubbles, or uneven surfaces. Single-layer pressing avoids these issues.
3. Works Well with Thick or Heavy Boards
   • Thick or dense boards need stronger pressure and longer pressing time. Single-layer presses provide steady pressure and a strong frame to handle this.
4. Flexible for Complex Jobs
   • For special processes like multi-layer or heat-resistant surfaces, single-layer machines let you control temperature and pressure more precisely.
5. Better Quality Control
   • For high-quality or certified products, single-layer presses allow checking each board, reducing defects and improving overall quality.
6. Easier to Maintain and Use
   • Single-layer machines are simpler, less likely to break, and easier to fix, so they keep running smoothly without causing quality problems.
