48M Veneer Dryer with Wood Burner Furnace in 2 decks

48M Veneer Dryer with Wood Burner Furnace in 2 decks

Technical Parameters

• Working Width: 3000mm

• Decks: 2

• Roller Material: Q235B, φ89 steel pipe

• Heating Area Length: 44 meters

• Cooling Area Length: 4 meters

• Heating Material & Drying Temperature: Uses waste wood as fuel; temperature adjustable between 140–180°C

• Equipped with automatic temperature control and speed regulation systems to ensure uniform moisture content

• Veneer Transport Speed: 5–22 meters per minute, driven by 16A chain

Motor power:

• Hot Air Blowers: 5.5KW × 11 units

• Traction Motors: 7.5KW × 2 units, frequency-controlled

• Cold Air Blower: 5.5KW × 1 unit

• Air Intake Fans: 11KW × 2 units

• Biomass Burner (6 Ton): 16.5KW

• Total Installed Power: 119.5KW

• Actual Electricity Consumption: About 80 kWh per hour

Our Features:

This dryer uses a wood burner furnace, unlike steam or oil type dryers.

• The burner furnace provides high-temperature hot air for drying.

• It has a thermal efficiency of 75%–85%, which means it uses energy very well and saves costs.The burner provides stable, high-temperature heat.

• The furnace burns low-cost fuels like wood, wood chips, rice husks, and biomass pellets.

• It works especially well with continuous roller conveyor dryers.

• Ideal for large-scale, efficient drying of veneer.

•


Product Details Show

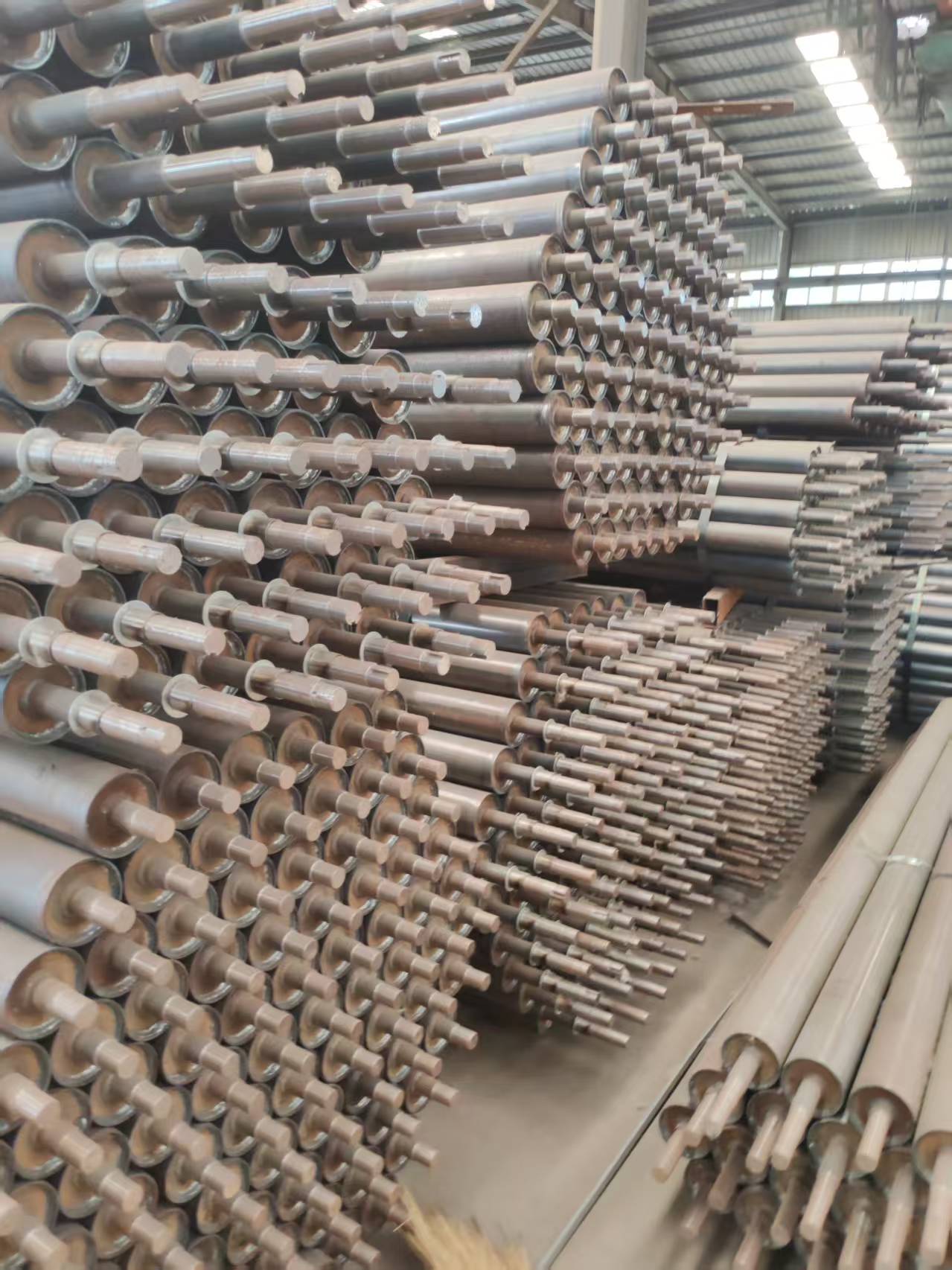

High-Strength Roller Structure
Uses φ89mm special shaft pipes with a wall thickness of 3mm and a center spacing of 180mm between rollers, ensuring stable and smooth veneer conveying.

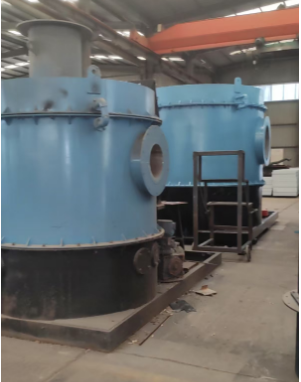

Wood Waste Burner
Burns crushed bark and other biomass directly. It’s energy-saving, eco-friendly, and greatly reduces drying costs. Ideal for wood factories using their own waste. Compared to steam or thermal oil dryers, it operates 40–60°C hotter (140–180°C), drying faster and boosting output.

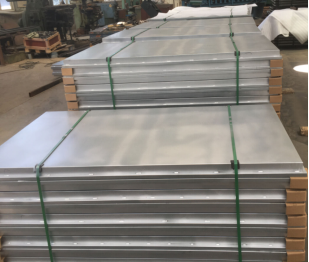

Efficient Insulation System
The side insulation panels are 60mm thick, made with 1.2mm galvanized sheets and lined with aluminum silicate blanket.
The top panels are 75mm thick and lined with rock wool composite boards for improved thermal insulation.

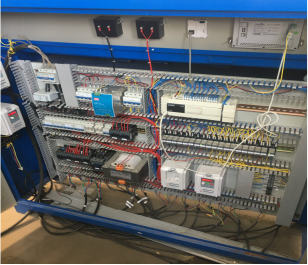

Smart Control System

With smart control, the machine automatically adjusts running speed and drying temperature according to the veneer’s thickness and moisture level.
