Quality Control Methods for Wood Veneer Production

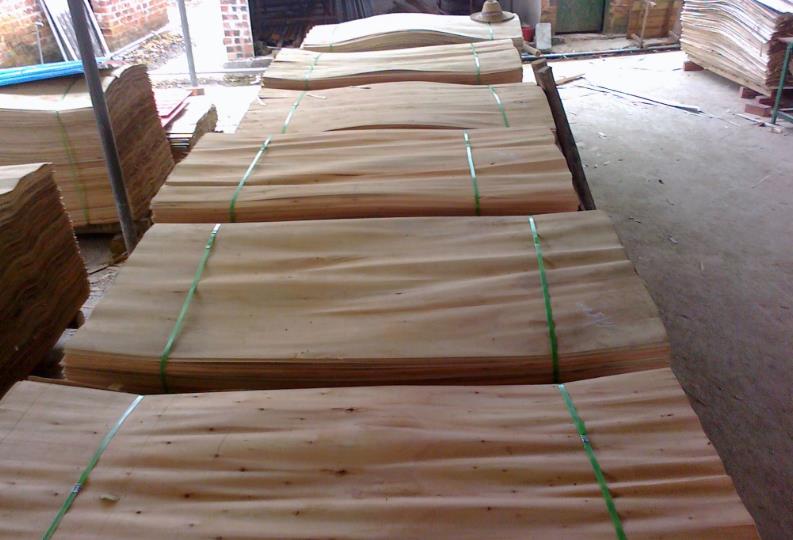

As the core substrate of artificial board, the quality of veneer directly affects the bonding strength, surface smoothness, and service life of the finished product. Establishing a standardized control system from three major aspects can effectively reduce the defect rate to within 3%:
1. Pre inspection of raw material grading
Raw wood defect screening: using a combination of visual inspection and non-destructive testing to remove logs with insect infestation, hollowing, and severe bending (curvature>5%), avoiding quality accidents such as broken blades and single board perforation during processing;
Dynamic adjustment of moisture content: Based on the characteristics of eucalyptus, poplar and other tree species, the moisture content of the logs should be controlled within the range of 40% -55%. Excessive moisture can easily cause the veneer to curl during rotary cutting, while excessive dryness can lead to fragmentation.
2. Precision of rotary cutting parameters
Thickness gradient control: According to the classification of veneer usage, the base material of building formwork is controlled within 1.8-2.2mm, and the furniture panel is controlled within 0.8-1.5mm, with an error range of ± 0.05mm;
Rotary cutting speed adaptation: Eucalyptus logs with high hardness need to be reduced to 35-40m/min, while softwood such as poplar can be increased to 50-60m/min, balancing efficiency and yield.
3. Finished product grading inspection
Thickness uniformity testing: Use a laser thickness gauge to scan the entire surface of the veneer and remove batches with a thickness variation coefficient greater than 5%;
Surface defect removal: Set up dual levels of manual and AI visual inspection, focusing on identifying defects such as cracks, burrs, and bark residues, classify packaging, and establish traceability files;
Moisture content retest: The moisture content of the finished veneer should be stable at 8% -12%, and the batches exceeding the standard should be subjected to secondary treatment through microwave drying equipment.
By building a three-level quality firewall of "raw materials rotary cutting detection" and combining it with a digital management platform to monitor 12 key indicators such as rotary cutting parameters and drying curves in real time, the defect rate of single boards can be reduced from the industry average of 12% to below 3%, and the utilization rate of ton materials can be increased by 8% -10%. It is recommended that wood industry enterprises conduct process optimization reviews every quarter, adjust parameters in a timely manner in response to seasonal fluctuations in raw materials such as eucalyptus, and continuously consolidate their quality advantages.
